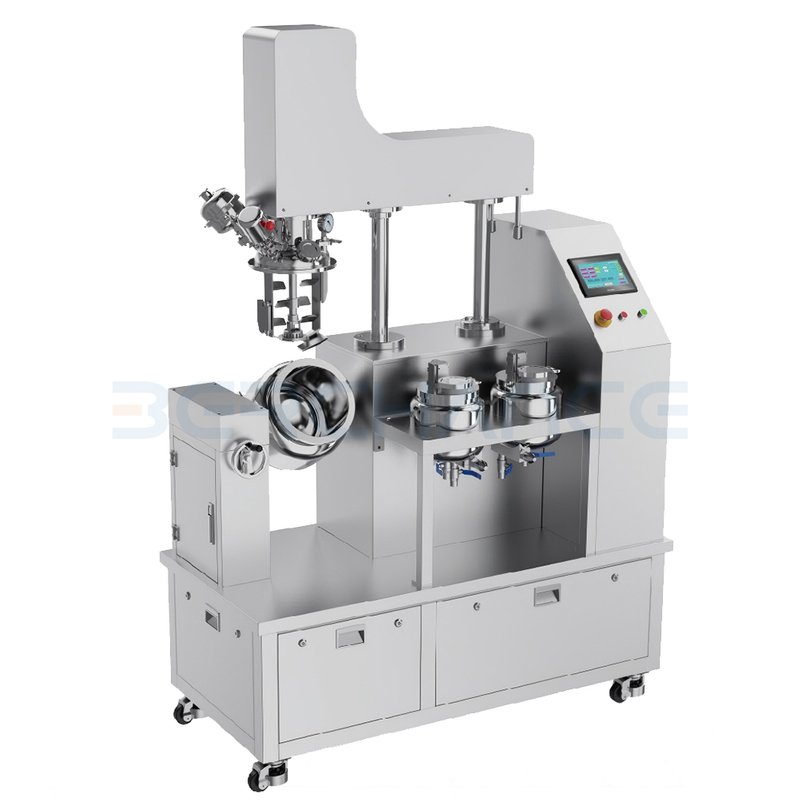

Material: All wetted parts are made of SUS316L with high-strength design and special advanced coating.
Automation: Fully automated process from premixing and feeding to homogenization and discharging via touch screen.
Controllability: Friendly HMI with a unique glass sight port for clear observation of production and experimental processes.
Applicable Materials: Battery Slurry, Solder Paste, Ceramic Paste, Plastic Resin, Silicone Ink.
Sales Model: Factory Direct, Modular Customization, OEM Supported.
MOQ: 1 Unit
| Quantity: | |
|---|---|
Product Feature
l High Grade：From premixing - feeding - homogeneous mixing - emulsifying - discharging, all can be finished by this unit. The customer only need to connect water (for cooling and heating), electricity and sewage (for drainage) outlet.
l Strong Controllability：The man-machine interface of this unit is very friendly, the machine operation is easy, through the unique main pot glass pot material design, the customer can clearly observe the experiment or production of materials, process, in order to achieve the optimal controllable effect.
l High Degree of Automation：The unit is controlled by the program developed by the company. All the functions of the unit are realized the touch screen.
l Reliability Design：The unit is made of stainless steel, all possible contact with the material parts are used SUS316L and manufacture. High strength design with special coating and other advanced technology to ensure the reliable operation or the machine.
Applicable Materials
Battery Slurry, Solder Paste, Ceramic Paste, Plastic Resin, Silicone Ink
Product Parameters
Product | Name | 5L | 10L |
Emulsifying Pot | Volume /L | 5 | 10 |
Main pot thickness /mm | 3X3 | 3X3 | |
Scraper mixing power /kw | 0.75 | 0.75 | |
Scraper pick-up speed /rpm | 0-80 | 0-80 | |
Homogenizer power /kw | 0.55 | 0.75 | |
Lifting power /kw | 0.2 | 0.2 | |
Homogenization speed /rpm | 0-2850 | 0-2850 | |
Mixing and homogenizing sealing | Skeleton oil seal, Mechanical seals, Oil seals | ||
Aqueous Pots | Volume /L | 2.5 | 5 |
Aqueous pot thickness /mm | 3X3 | 3X3 | |
Dispersion speed /rpm | 1440 | 1440 | |
Dispersion power /kw | 0.12 | 0.12 | |
Oil-phase pan | Volume /L | 2.5 | 5 |
Thickness of the oil phase pan /mm | 3X3 | 3X3 | |
Dispersion speed /rpm | 1440 | 1440 | |
Dispersion power /kw | 0.12 | 0.12 | |
Hole machine | Size /mm | 1662x792x2050(2390) | 1662x792x2100(2440) |
