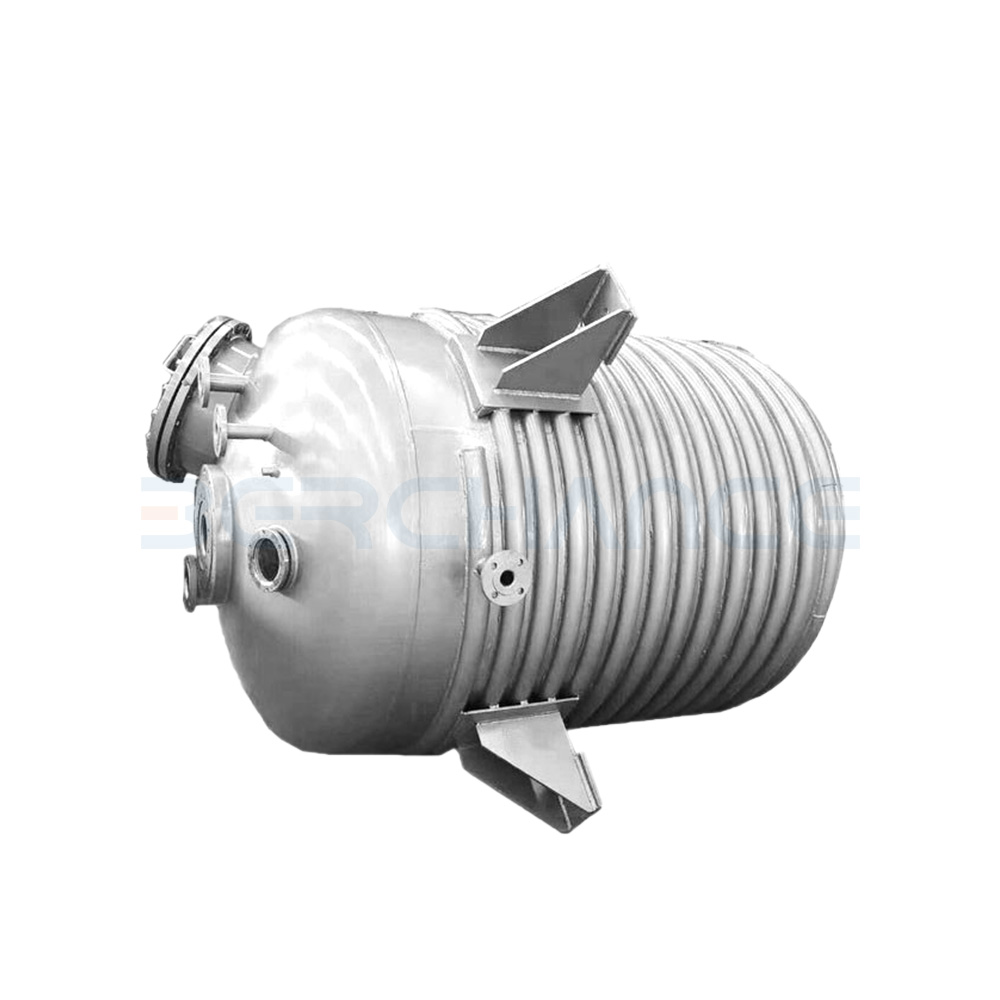

Outer Coil /Jacket Reactor

Quantity:
Availability:





Inquire Add to Basket

Product Description

Stainless steel reactors are widely used in petroleum, chemical, rubber, pesticide, dye, pharmaceutical, and food industries, as well as in various scientific research projects. They serve as vessels for processes such as hydrolysis, neutralization, crystallization, distillation, evaporation, storage, hydrogenation, hydrocarbonization, polymerization, condensation, heating and mixing, and isothermal reactions.

Agitation can be performed using anchor, paddle, turbine, propeller, or frame type impellers. For reactors with large diameters, multi-layer impellers can be installed, or configurations can be customized according to customer requirements.

Main Features:

01.Jacketed reactor with external coil heating, designed for capacities ranging from 500 L to 50,000 L.

02.Sealing options include mechanical seals and packing seals.

03.Heating methods: hot water heating, thermal oil circulation heating, external or internal coil heating.

04.Cooling methods: jacket cooling or internal coil cooling.

Capacity/L	Vessel Dimensions/mm	Actual Volume/L	Outer Coil Specs/mm	Heating Area/㎡	Inner Coil Specs/mm	Cooling Area/㎡	Motor Power/kw	Gearbox Model	Support Structure
500	900*800	699	Φ76/2	1.7	Φ38	1.6	3	XLB4-17-3	JXLD4-45
1000	1100*1200	1400	Φ76/2	2.6	Φ45	2.7	4	XLB4-17-4	JXLD4-45
1500	1300*1200	2166	Φ76/2	3.8	Φ45	3.6	5.5	XLB4-17-5.5	JXLD5-55
