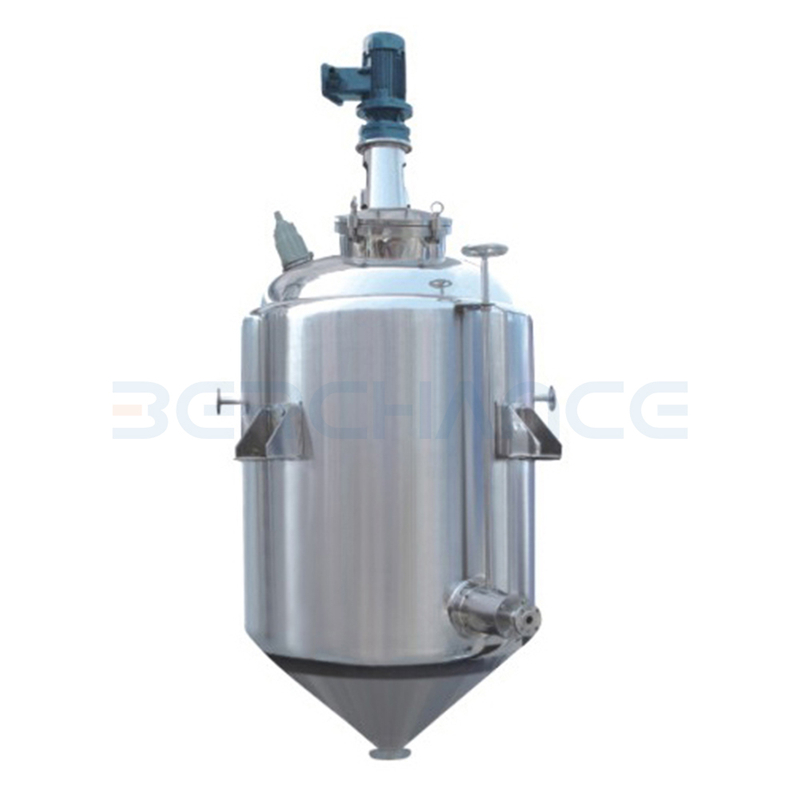

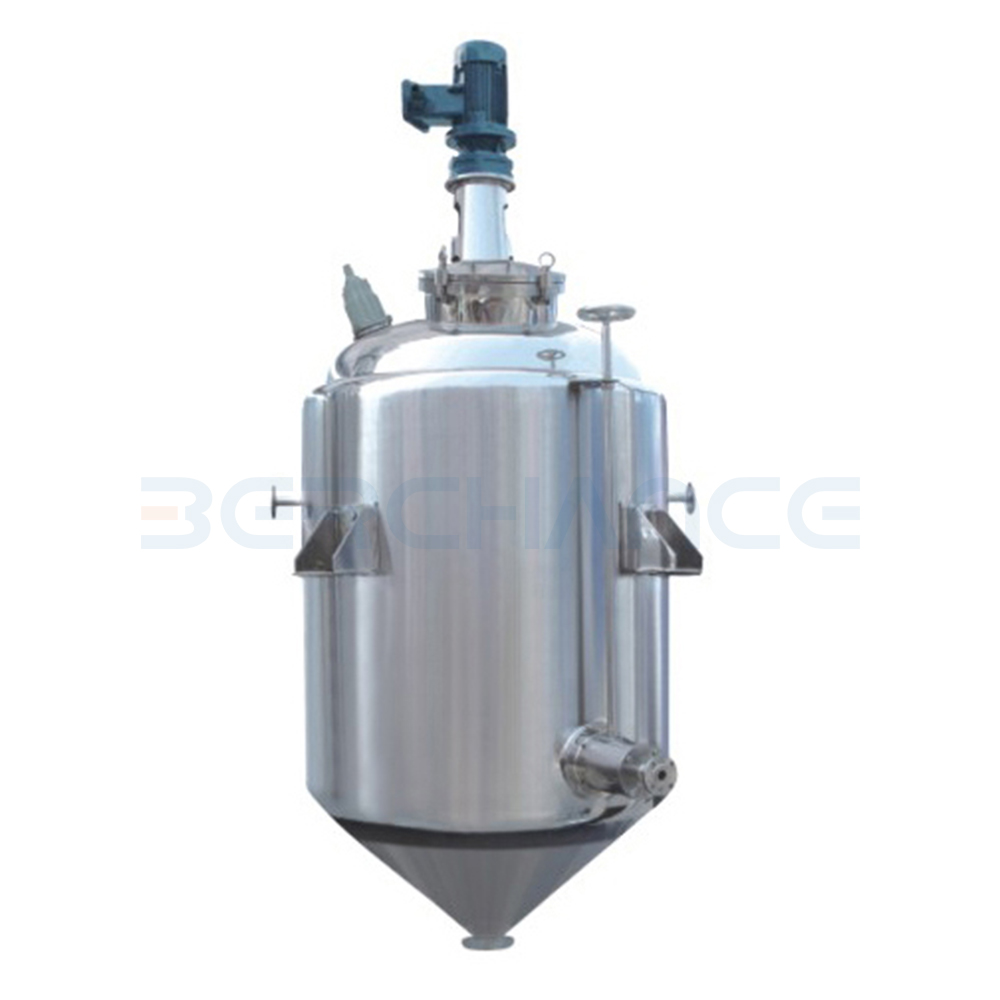

Alcohol Precipitation Tank
Application
This equipment is designed for alcohol precipitation in sectors such as Traditional Chinese Medicine (TCM), oral liquids, food, health products, and the chemical industry. As a specialized unit for alcohol precipitation, it is primarily used for chilled or ambient temperature alcohol precipitation of concentrated TCM decoctions. Additionally, it can be utilized for water precipitation processes of concentrated TCM alcohol extracts.
Performance
l Material: The entire unit is constructed from high-grade stainless steel.
l Cleaning System: Equipped with an automatic CIP (Clean-In-Place) spraying system.
l Cooling: The jacket is designed to circulate low-temperature cooling water.
l Sealing & Safety: The transmission components utilize mechanical seals, and the explosion-proof motor ensures operational safety and compliance with cGMP quality standards.
l Jacket Types: Two jacket options are available: Dimple Jacket (Miller board) or Standard Jacket.
Model /L | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 6000 |
Volume /m³ | 0.3 | 0.5 | 1.0 | 1.5 | 2 | 3 | 6 |
Heat Exchange Area/㎡ | 1.8 | 3.0 | 4.5 | 6.5 | 7.5 | 8.5 | 13.0 |
Operating Temp /℃ | Ambient Temp---15 |
Jacket Design Pressure | 0.09-0.4 Mpa |
Internal Pressure /Mpa | Atmospheric Pressure (ATM) |
Motor Power /kw | 0.75 | 0.75 | 1.5 | 2.2 | 2.2 | 3.0 | 5.0 |
Speed/rpm | 72 | 72 | 72 | 72 | 72 | 72 | 125 |

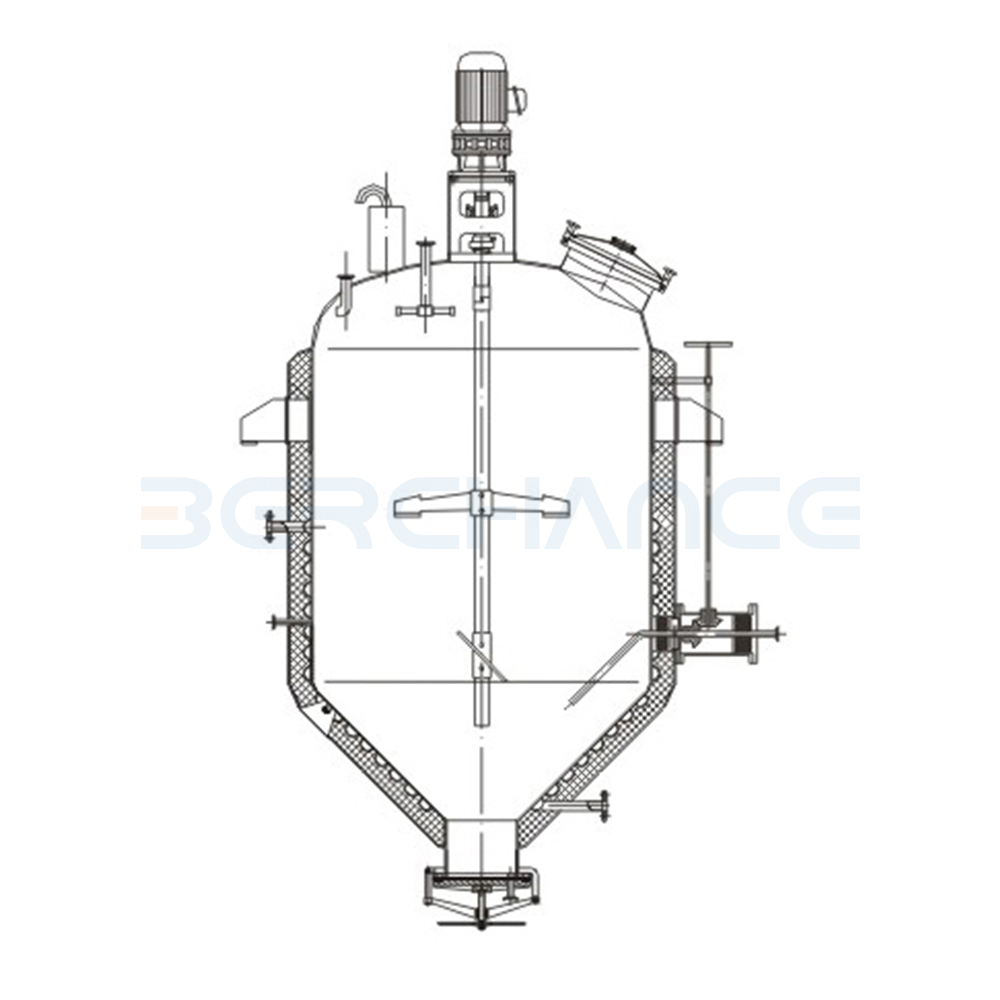

Overall /mm | 600 | 800 | 1000 | 1200 | 1300 | 1500 | 1600 |
800 | 1000 | 1200 | 1400 | 1500 | 1700 | 1800 |
900 | 1350 | 1700 | 2200 | 2700 | 2900 | 2700 |
